Hummer Knowledge Base

The Hummer Knowledge Base

Table 48. Wiper Blades (1994-2004)
Supplier Part/Product Number Verified
AM General
(1992-2001)
06003901 HML
AM General
(2002-2006)
6012642 HML
Anco 23 91-12 HML
CARQUEST 12-52
Dyna P12H
NAPA 26 60-012-2 Exact Fit HML
Pylon 4012
Roberk 26 1012
Trico 26 37-111 16
12-2 Exact Fit HML


Table 49. Wiper Blades (1992-1993)

Supplier Part/Product Number Verified
AM General see above HML
Trico 26 60-1150 HML
61-110 14


Table 49a. Rear Wiper Blade for Factory Slantback

Supplier Part/Product Number Verified
AM General 6010968 HML
Anco 23 91-15 HML


Upgraded Wiper Arms and Blades (Introduced around 2000)

AM General 6012641 Arm, wiper (2 required)
AM General 6012642 Blade, wiper (2 required)


Windshield Washer Reservoir (large style) Filler Cap 1999 & up

Supplier Part/Product Number
GM 22677855

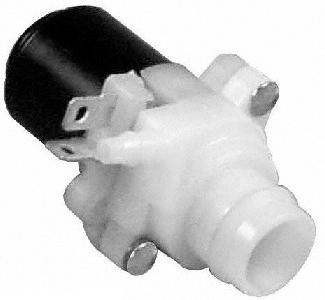

Windshield Washer Motor

Supplier Part/Product Number
Washer Motor ONLY - 1998 and earlier
(Does not include the reservoir tank)
Anco 6723
Washer Motor with Reservoir Tank
Available from BlueHummer or any Hummer Dealer
AM General (1998 and earlier)
5936121
AM General (1999-2001)
6010252
AM General (2002 and up, including Alpha)
6014480
Washer "Pump"
1999 and up, including Alpha, no reservoir
ACI 173690
Photos

Note from a user: "I've seen that guys were using an +01' Ford Mustang Windshield Wiper Fluid/Washer Pump, but if none are available, one can also use the pump from a 2004 Honda Odyssey Front pump. The rubber grommet on the large fitting is removable, and does, in fact, fit our tanks. This pump will fit '99+ trucks and did fit my '01 wagon. Can't be certain if it will fit Alphas...
Honda Part num: 38512-SC4-673
Trico Part num:11-602


Footnotes:

14 - Heavy Duty

16 - Winter Duty

23 - Manufactured by Federal-Mogul Corporation

26 - Manufactured by Stant Manufacturing, Inc., a subsidiary of Gates Rubber Company and of Tomkins PLC
