Adding Flowthrough Ventilation
by Dave Breggin


Applies to 94-96 Hummers:

Wagon Kit: 05744797 - Hummer model 84

Non-Wagon Kit: 05744798 - Hummer model 82, 83, 86, 87, 89

I am not familiar with what these model numbers mean.

The kits come complete with everything except tools and supplies (i.e. epoxy and body sealer).

Took about 4 hours to install.

Dave Breggin '95 Diesel Wagon

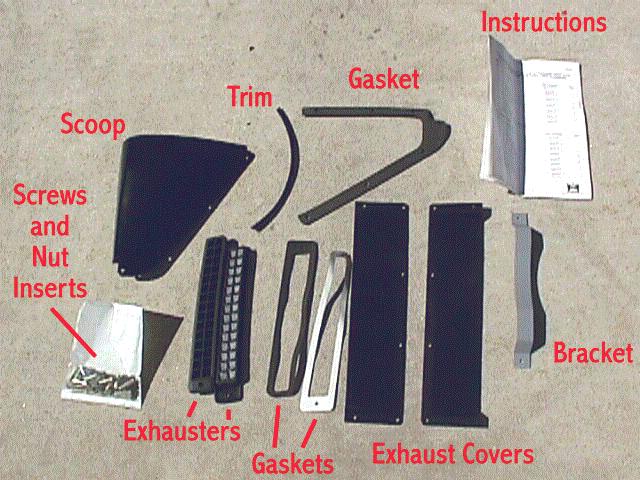

Kit Contents (for Wagon)

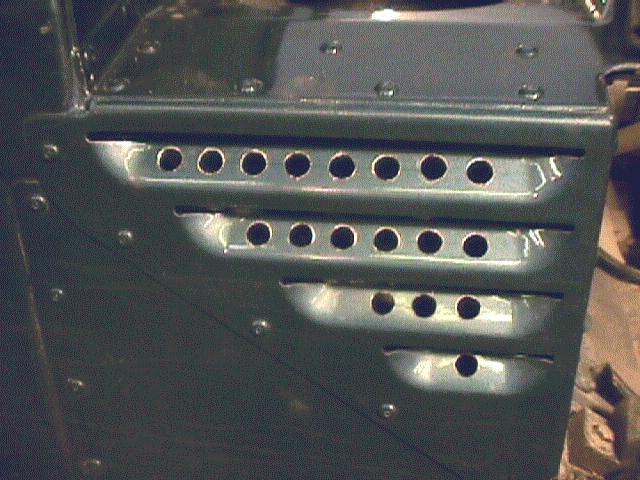

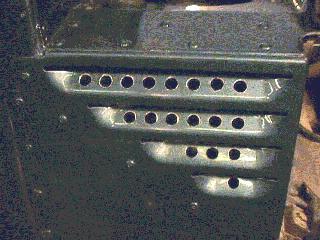

Holes cut in stock louvers to allow better air flow

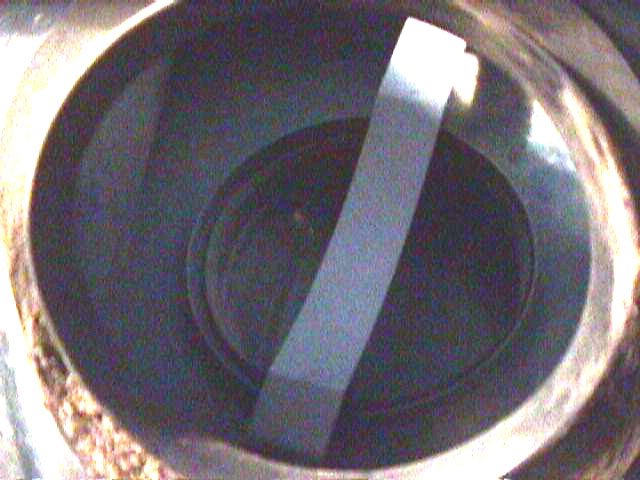

Bracket in place - brackets holds engine air intake elbow (between rain cap and filter canister) away from cab air intake (hole in center of picture) - picture taken with air filter canister removed

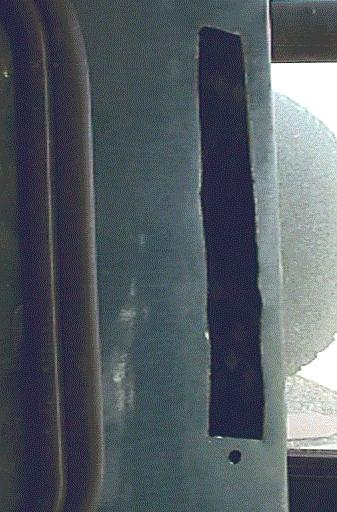

Hole cut in rear of wagon for exhauster (LR)

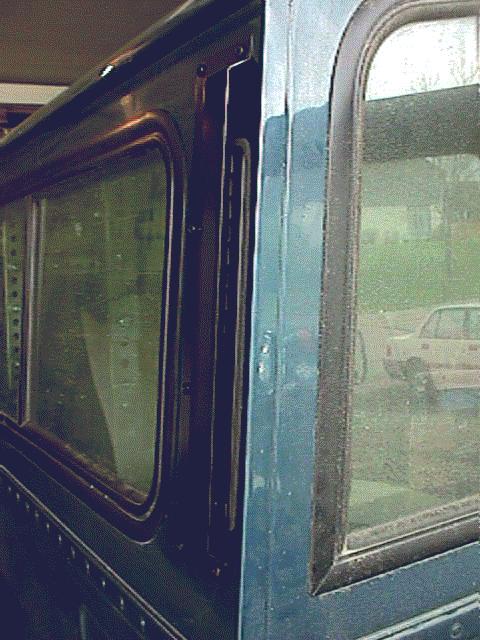

Installed rear exhauster and cover (LR)

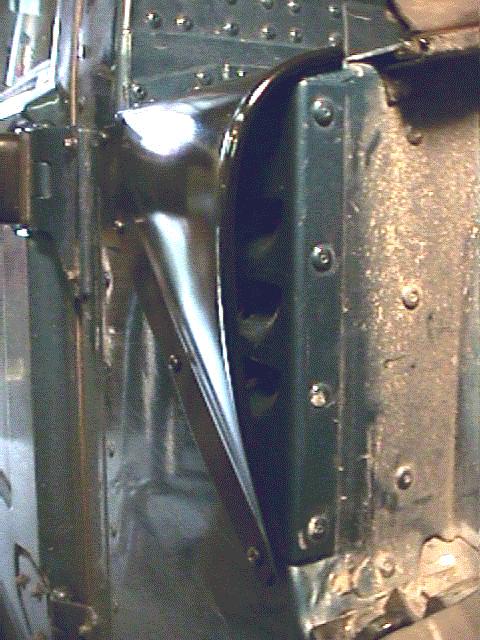

Scoop (from front, hood is raised)

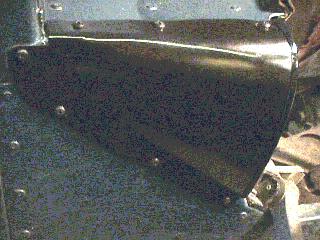

Scoop (from side)

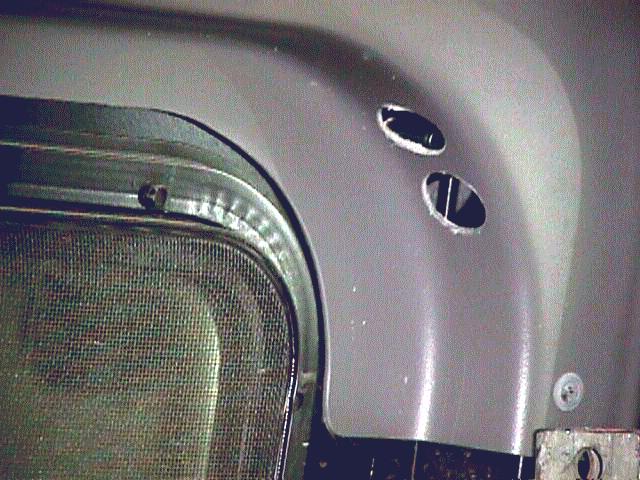

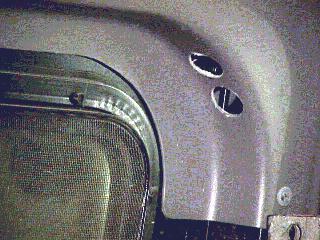

Exit holes in plastic trim in upper rear corner of wagon (right side)
