HMMWV Fuel Tank Access Cover:

From U.S. Army PS Magazine

COVER LOCATION

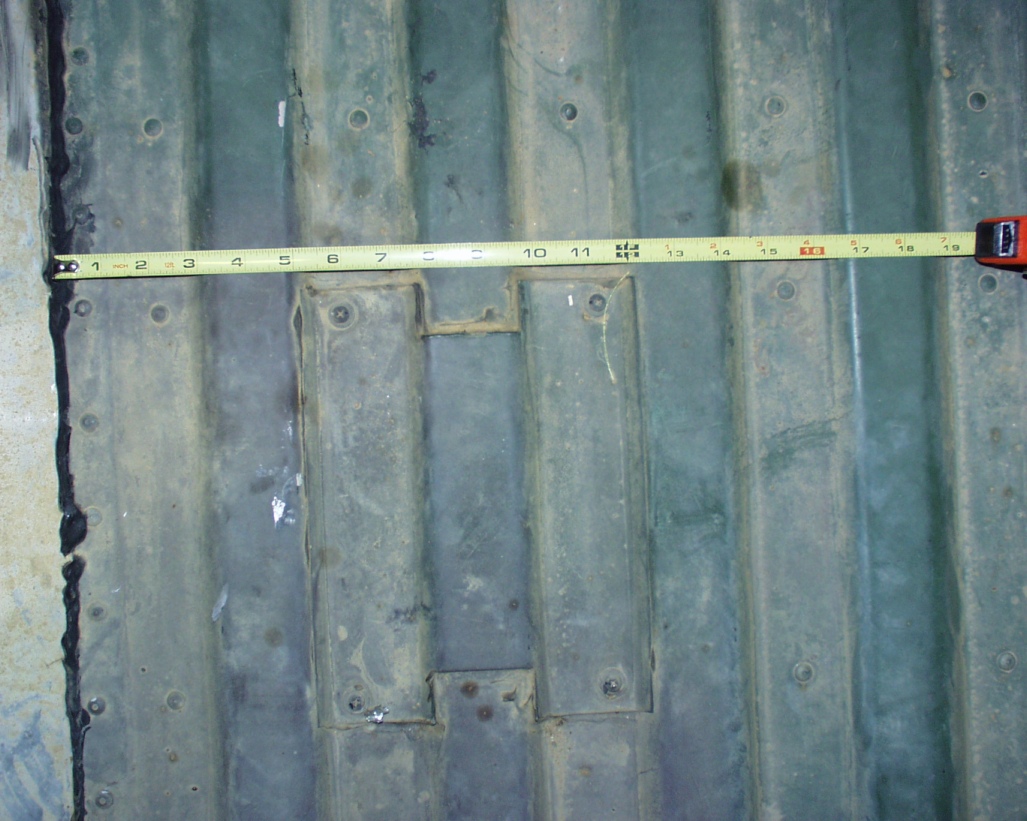

The 2 images below show the location of the coverplate on a HMMWV floor. (click on image to enlarge) The width was taken from the edge of the tunnel top panel not the tunnel side.


fuel access cover location (width)

fuel access cover location (length)

The length dimension is taken from the outside surface of the rear "D" beam that the tailgate hinges on.

The actual opening size is 5" X 7" but you may want to adjust it larger for additional clearance to remove the sender. You will be cutting between two crossmembers so start small. NB. The tank is close to the floor (approximately .75").
