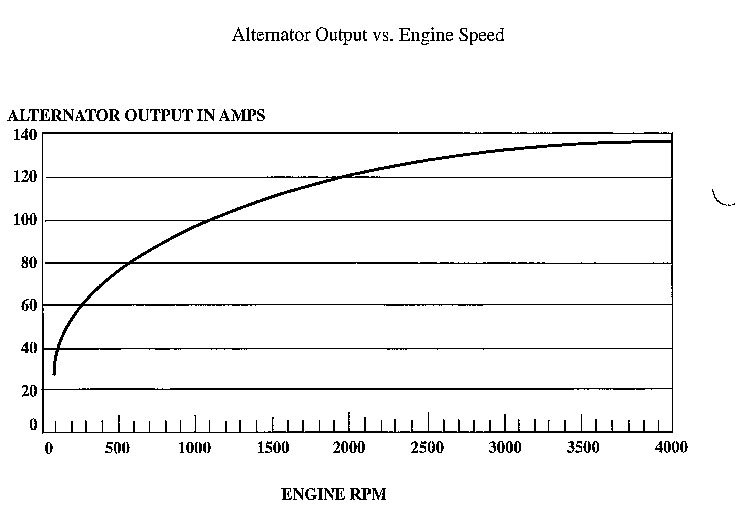

Here is the alternator output graph for the 6.5 L Diesel Hummer. It is copied from the AMG applications guide for Hummers, and is current as of the '95 model year for the 120 amp alternator:

(Click on graph for a larger version)

Dave Breggin
'95 Diesel Wagon
